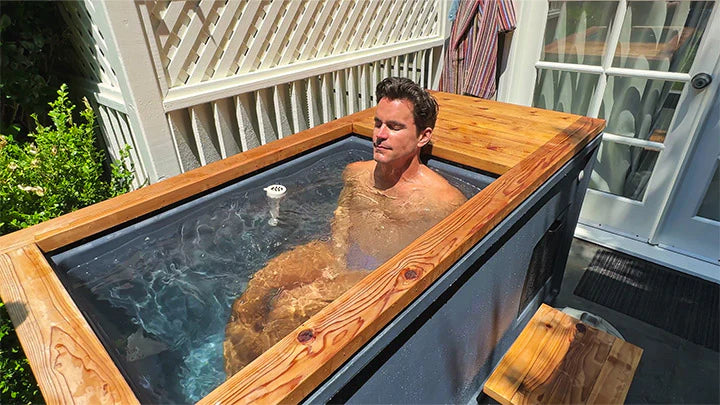

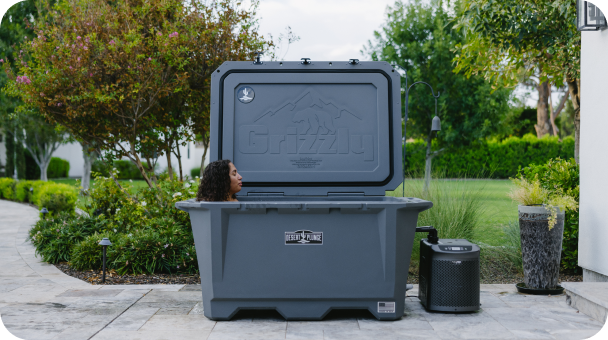

SUPREME AQUA-MAG® 500 to 1800 SERIES PUMPS are perfect for cold plunge pools, delivering quiet, efficient, and reliable 24/7 performance. The magnet impeller assembly and epoxy-encased power unit ensure the water remains free from harmful oils or chemicals, maintaining a pristine cold plunge environment.
Product Features
• For use with In-Line Cold Plunge Applications (Pre-filter not included).
• 10’ Grounded Power Cord
• Energy Efficient
• 500 and 700 GPH Pumps Made in USA
• Models 5 and 7 - 1/2” FPT Inlet, MPT Outlet
• Models 9.5, 12 and 18 - 3/4” FPT Inlet, MPT Outlet
• Model 12 and 18 include Foam Rubber Vibration Isolation Pad
• 5 Year Limited Warranty
AQUA-MAG 500 - ITEM# 02515 Max. Watts/Amps: 45/0.9 Volts: 120 / 60Hz Inlet: 1/2" FPT Outlet: 1/2" MPT Cord Length: 10' Dimensions (L x W x H): 5.0" x 3.8" x 4.2" Recommended Tank Size: 60 Gallons |
AQUA-MAG 700 - ITEM# 02517 Max. Watts/Amps: 70/1.6 Volts: 120 / 60Hz Inlet: 1/2" FPT Outlet: 1/2" MPT Cord Length: 10' Dimensions (L x W x H): 5.0" x 3.8" x 4.2" Recommended Tank Size: 85 Gallons |
AQUA-MAG 950 - ITEM# 02710 Max. Watts/Amps: 93/1.33 Volts: 120 / 60Hz Inlet: 3/4" FPT Outlet: 3/4" MPT Cord Length: 10' Dimensions (L x W x H): 5" x 3" x 5.25" Recommended Tank Size: 110 Gallons |
AQUA-MAG 1200 - ITEM# 02712 Max. Watts/Amps: 110/1.5 Volts: 120 / 60Hz Inlet: 3/4" FPT Outlet: 3/4" MPT Cord Length: 10' Dimensions (L x W x H): 6.4" x 3" x 5.25" |
AQUA-MAG 1800 - ITEM# 02718 Max. Watts/Amps: 145/1.55 Volts: 120 / 60Hz Inlet: 3/4" FPT Outlet: 3/4" MPT Cord Length: 10' Dimensions (L x W x H): 6.4" x 3" x 5.25" |
|
PUMPING SPECIFICATIONS | ||||||||||||||
PUMP |
ITEM# |
WATTS |
FLOW AT 1’ |
FLOW AT 2’ |
FLOW AT 3’ |
FLOW AT 4’ |
FLOW AT 5’ |
FLOW AT 6’ |
FLOW AT 7’ |
FLOW AT 8’ |
FLOW AT 9’ |
FLOW AT 10’ |
FLOW AT 15’ |
SHUTOFF (FEET) |
500 GPH |
02515 |
45 |
525 |
450 |
400 |
350 |
300 |
235 |
200 |
150 |
95 |
- |
- |
10’ 6” |
700 GPH |
02517 |
70 |
655 |
605 |
565 |
530 |
450 |
420 |
325 |
275 |
200 |
110 |
- |
11’ 8” |
950 GPH |
02710 |
93 |
1010 |
930 |
900 |
840 |
770 |
710 |
650 |
600 |
530 |
475 |
- |
13’ 7” |
1200 GPH |
02712 |
110 |
1190 |
1130 |
1065 |
940 |
900 |
840 |
795 |
730 |
630 |
570 |
- |
13’ 7” |
1800 GPH |
02718 |
145 |
1300 |
1240 |
1170 |
1130 |
1040 |
1015 |
925 |
880 |
810 |
775 |
470 |
16’ 6” |
• For use with In-Line Cold Plunge Applications
• 10’ Grounded Power Cord
• Energy Efficient
• 500 and 700 GPH Pumps Made in USA
• Models 5 and 7 - 1/2” FPT Inlet, MPT Outlet
• Models 9.5, 12 and 18 - 3/4” FPT Inlet, MPT Outlet
• Model 12 and 18 include Foam Rubber Vibration Isolation Pad
• 5 Year Limited Warranty
