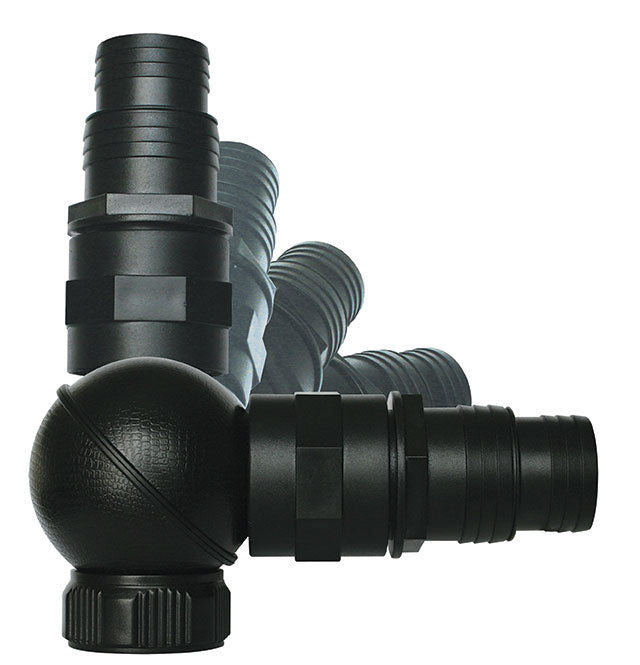

Pondmaster Hy-Drive Water Pumps

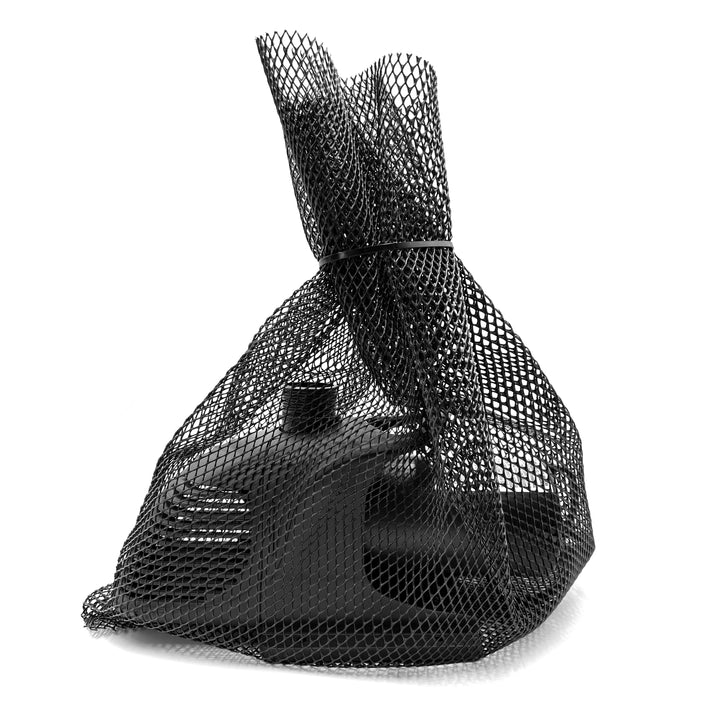

PONDMASTER HY-DRIVE WATER PUMPS are rugged, powerful and efficient. The compact size makes it ideal to use in larger ponds, skimmers, waterfalls or anywhere that space is tight. All pumps come with a full set of fittings and include a free pump bag for extra pump protection.

Item # 20210

PONDMASTER HY-DRIVE WATER PUMPS are rugged, powerful and efficient. The compact size makes it ideal to use in larger ponds, skimmers, waterfalls or anywhere that space is tight. All pumps come with a full set of fittings and include a free pump bag for extra pump protection.


Product Features

• Powerful, Efficient Hybrid Magnetic/Direct Drive Motor

• Energy-Efficient to Reduce Operating Cost

• Whisper-Quiet Operation

• High-Efficiency Vortex Impeller

• Convenient Carry Handle

• Includes Extra Large Clog Resistant Filter Screen

• Oil-Free / Fish Safe

• Continuous Duty Operation

• 20’ Power Cord with Grounded Plug

• In-line and Submersible Operation

• 1900, 2550, 4850, 6100 and 6600 - 1 1/2” Female Threaded Inlet and Male Threaded Outlet

• 7600 - 2” Female Threaded Inlet and 1 1/2" Male Threaded Outlet

• Packed 2 Per Master Carton

• 3 Year Limited Warranty


1900 GPH – ITEM# 20210

Max. Watts/Amps 93/.78

Volts: 120 / 60Hz

 Shutoff 10'

Dimensions (L x W x H) 9.0" x 4.25" x 6.75"

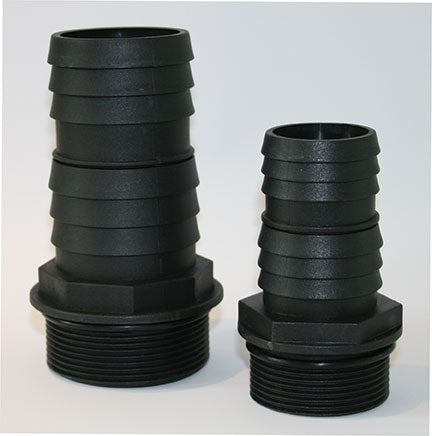

Included Fittings: (2) 1 1/2" Couplings, (2) 1 1/2" Stepped Barbs and Swivel Joint Connector

2550 GPH – ITEM# 20215

Max. Watts/Amps 147/1.25

Volts: 120 / 60Hz

Shutoff 1 1' 5"

Dimensions (L x W x H) 9.0" x 4.25" x 6.75"

Included Fittings: (2) 1 1/2" Couplings, (2) 1 1/2" Stepped Barbs and Swivel Joint Connector

4850 GPH – ITEM# 20220

Max. Watts/Amps 328/2.76

Volts: 120 / 60Hz

Shutoff 22' 5"

Dimensions (L x W x H) 10.5" x 4.5" x 7.75"

Included Fittings: 1 1/2" Coupling, 2" Coupling, 2" to 1 1/2" Reducer, 1 1/2" Stepped Barb, 2" Stepped Barb, 1 1/2" Swivel Joint Connector

6100 GPH – ITEM# 20225

Max. Watts/Amps 520/4.39

Volts: 120 / 60Hz

Shutoff 28'

Dimensions (L x W x H) 10.5" x 4.5" x 7.75"

Included Fittings: 1 1/2" Coupling, 2" Coupling, 2" to 1 1/2" Reducer, 1 1/2" Stepped Barb, 2" Stepped Barb, 1 1/2" Swivel Joint Connector

6600 GPH – ITEM# 20230

Max. Watts/Amps 593/4.94

Volts: 120 / 60Hz

Shutoff 30' 5"

Dimensions (L x W x H) 10.5" x 4.5" x 7.75"

Included Fittings: 1 1/2" Coupling, 2" Coupling, 2" to 1 1/2" Reducer, 1 1/2" Stepped Barb, 2" Stepped Barb, 1 1/2" Swivel Joint Connector

7600 GPH – ITEM# 20235

Max. Watts/Amps 660/5.5

Volts: 120 / 60Hz

Shutoff 27' 5"

Dimensions (L x W x H) 10.5" x 4.5" x 7.75"

Included Fittings: 1 1/2" Coupling, 2" Coupling, 2" to 1 1/2" Reducer, 1 1/2" Stepped Barb, 2" Stepped Barb, 1 1/2" Swivel Joint Connector



PM NAME

PM ITEM#

Watts

Flow at 1'

Flow at 3'

Flow at 5'

Flow at 7'

Flow at 10'

Flow at 15'

Flow at 20'

Flow at 25'

Flow at 30'

Shut-Off (Feet)

PMHD 1900

20210

93

1710

1325

870

555

-

-

-

-

-

10'

PMHD 2550

20215

147

2380

2010

1490

1045

455

-

-

-

-

11' 5"

PMHD 4850

20220

328

4725

4300

3700

3050

2225

1550

300

-

-

22' 5"

PMHD 6100

20225

520

5750

4725

4175

3450

2400

1625

850

250

-

28'

PMHD 6600

20230

593

6525

6275

5500

4925

4325

3325

2425

1850

550

30' 5"

PMHD 7600

20235

660

7440

7210

6690

6170

5525

3805

2640

1310

-

27' 5"
