Pond & Waterfalls

Pond & Waterfalls, Pond & Waterfalls : Pump Vaults, ProLine

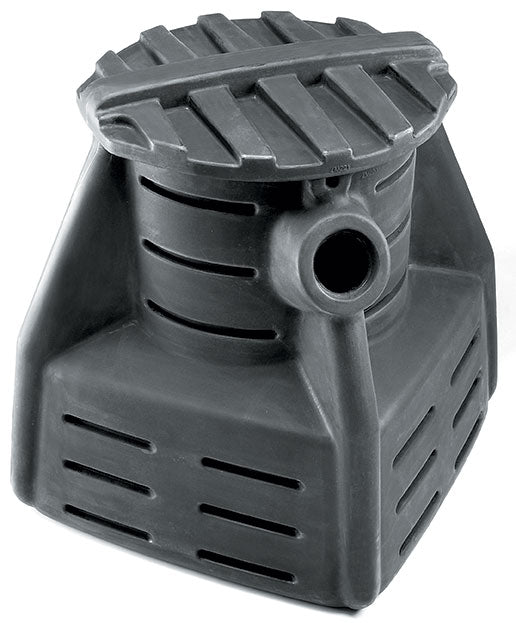

ProLine Pump Vaults

PROLINE VAULTS ARE STURDY HOUSINGS USED IN SELF-CONTAINED WATERFALLS AND STREAMS. They will accommodate submersible pumps up to 10,000 GPH and are specially designed to withstand clogs and heavy stones. Create your own dramatic natural looking water highlight that offers all the beauty and pleasing sounds of a waterfall in a fraction of the space. A self-contained waterfall or stream is easy to install and even easier to maintain. Best of all, it's pet and child safe. ProLine Pump Vaults are the basis for creating a long lasting, trouble-free installation.

Features horizontal hooded intake slots; Resist clogging and sedimentation from top to bottom.


Item # 02465


PROLINE VAULTS ARE STURDY HOUSINGS USED IN SELF-CONTAINED WATERFALLS AND STREAMS. They will accommodate submersible pumps up to 10,000 GPH and are specially designed to withstand clogs and heavy stones. Create your own dramatic natural looking water highlight that offers all the beauty and pleasing sounds of a waterfall in a fraction of the space. A self-contained waterfall or stream is easy to install and even easier to maintain. Best of all, it's pet and child safe. ProLine Pump Vaults are the basis for creating a long lasting, trouble-free installation.

Features horizontal hooded intake slots; Resist clogging and sedimentation from top to bottom.


Product Features

• Acts As A Pre-Filter to Protect Submerged Pump Intakes from Getting Clogged with Gravel or Debris

• Built of Rugged, Weather-Resistant Polyethylene Plastic

• Horizontal Hooded Intake Slots Resist Clogging and Sedimentation from Top to Bottom

• Reinforced Lid Withstands The Weight of Gravel and Stones

• Works Great For Free Standing Fountains, Endless Streams and Waterfalls

• Buttressed To Withstand Backfilling Without Warping or Collapsing

• Pre-Bored for 11⁄2" and 2" Pipe with Bulkheads for Auto Fill Valve on 2000 and 4800; Auto Fill Valve Included with Pro 4800

• Packed Individually


PRO2000 MINI PUMP VAULT - ITEM# 02465

Maximum Pump Flow 4000 GPH

Unit Dimensions 15" L x 15" W x 15" H

Weight 12 lbs.

PRO4800 PUMP VAULT - ITEM# 02460

Maximum Pump Flow 10,000 GPH

Unit Dimensions 23" L x 23" W x 25" H

Weight 16 lbs.





Download ZG101.pdf ( 2.61 MB)
