Pondmaster Pond-Mag Magnetic Drive Water Pumps
PONDMASTER POND-MAG® 250 to 3600 SERIES PUMPS have been designed to handle virtually any application where water has to be moved. They've been fulfilling the needs of professionals and consumers for decades with quiet, efficient and reliable 24/7 performance. They feature a magnet impeller assembly and an epoxy encased power unit ensuring that water never gets contaminated with harmful oils or chemicals.
Pond-Mag 250 through 700 GPH Pumps are great for small to medium size ponds between 150 and 550 Gallons.
Pond-Mag 950 through 1800 GPH Pumps are great for ponds between 850 and 1,100 Gallons.
Pond-Mag 2400 and 3600 GPH Pumps are great for large ponds between 2,000 and 2,600 Gallons.
PONDMASTER POND-MAG® 250 to 3600 SERIES PUMPS have been designed to handle virtually any application where water has to be moved. They've been fulfilling the needs of professionals and consumers for decades with quiet, efficient and reliable 24/7 performance. They feature a magnet impeller assembly and an epoxy encased power unit ensuring that water never gets contaminated with harmful oils or chemicals. Pondmaster Pond-Mag® pumps are perfect for all pond environments
Product Features
• 5 Year Limited Warranty

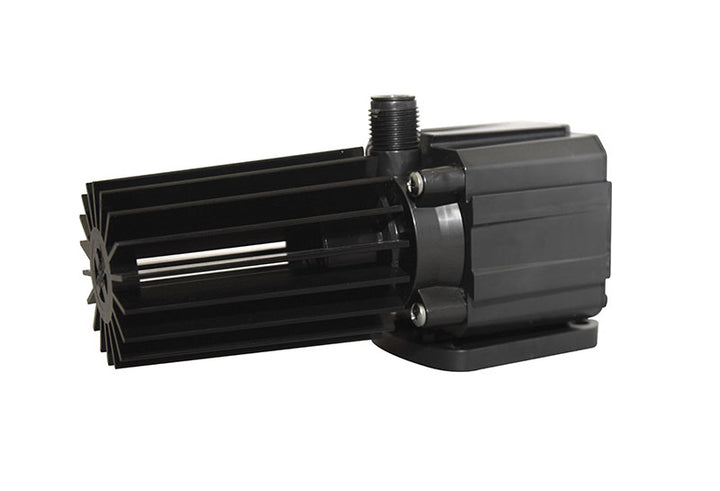

• Rigid Pre-Filter Included
• Ceramic Shaft
• 18' Grounded Power Cord
• PM 250 through 700 Made in USA
• Operates Submerged or Inline
• UL/CUL Certified
|
PM 250 - ITEM# 02522 Max. Watts/Amps: 24/0.4 Volts: 120 / 60Hz Inlet: 1/2" FPT Outlet: 1/2" MPT Cord Length: 18' Dimensions (L x W x H): 5.0" x 3.8" x 4.2" |
PM 350 - ITEM# 02523 Max. Watts/Amps: 35/0.6 Volts: 120 / 60Hz Inlet: 1/2" FPT Outlet: 1/2" MPT Cord Length: 18' Dimensions (L x W x H): 5.0" x 3.8" x 4.2" |
|
PM 500 - ITEM# 02525 Max. Watts/Amps: 45/0.9 Volts: 120 / 60Hz Inlet: 1/2" FPT Outlet: 1/2" MPT Cord Length: 18' Dimensions (L x W x H): 5.0" x 3.8" x 4.2" |
PM 700 - ITEM# 02527 Max. Watts/Amps: 70/1.6 Volts: 120 / 60Hz Inlet: 1/2" FPT Outlet: 1/2" MPT Cord Length: 18' Dimensions (L x W x H): 5.0" x 3.8" x 4.2" |
|
PM 950 - ITEM# 02720 Max. Watts/Amps: 93/1.33 Volts: 120 / 60Hz Inlet: 3/4" FPT Outlet: 3/4" MPT Cord Length: 18' Dimensions (L x W x H): 5" x 3" x 5.25" |
PM 1200 - ITEM# 02722 Max. Watts/Amps: 110/1.5 Volts: 120 / 60Hz Inlet: 3/4" FPT Outlet: 3/4" MPT Cord Length: 18' Dimensions (L x W x H): 6.4" x 3" x 5.25" |
|
PM 1800 - ITEM# 02728 Max. Watts/Amps: 145/1.55 Volts: 120 / 60Hz Inlet: 3/4" FPT Outlet: 3/4" MPT Cord Length: 18' Dimensions (L x W x H): 6.4" x 3" x 5.25" |
PM 2400 - ITEM# 02750 Max. Watts/Amps: 237/2.2 Volts: 120 / 60Hz Inlet: 1" FPT Outlet: 1" MPT Cord Length: 18' Dimensions (L x W x H): 7.25" x 4.0" x 6" |
|
PM 3600 - ITEM# 02755 Max. Watts/Amps: 256/3.0 Volts: 120 / 60Hz Inlet: 1" FPT Outlet: 1" MPT Cord Length: 18' Dimensions (L x W x H): 7.25" x 4.0" x 6" |
|
PM NAME |
PM ITEM # |
Watts |
Flow at 1' |
Flow at 2' |
Flow at 3' |
Flow at 4' |
Flow at 5' |
Flow at 6' |
Flow at 7' |
Flow at 8' |
Flow at 9' |
Flow at 10' |
Shut-Off (Feet) |
|
PM 250 |
02522 |
24 |
280 |
230 |
170 |
130 |
65 |
25 |
- |
- |
- |
- |
6' 5" |
|
PM 350 |
02523 |
35 |
420 |
375 |
325 |
280 |
235 |
190 |
140 |
90 |
30 |
- |
10' 4" |
|
PM 500 |
02525 |
45 |
525 |
450 |
400 |
350 |
300 |
235 |
200 |
150 |
95 |
- |
10' 6" |
|
PM 700 |
02527 |
70 |
655 |
605 |
565 |
530 |
450 |
420 |
325 |
275 |
200 |
110 |
11' 8" |
|
PM NAME |
PM ITEM # |
Watts |
Flow at 1' |
Flow at 2' |
Flow at 3' |
Flow at 4' |
Flow at 5' |
Flow at 6' |
Flow at 7' |
Flow at 8' |
Flow at 9' |
Flow at 10' |
Flow at 15' |
Shut-Off (Feet) |
|
PM 950 |
02720 |
93 |
1010 |
930 |
900 |
840 |
770 |
710 |
650 |
600 |
530 |
475 |
- |
13' 7" |
|
PM 1200 |
02722 |
110 |
1190 |
1130 |
1065 |
940 |
900 |
840 |
795 |
730 |
630 |
570 |
- |
13' 7" |
|
PM 1800 |
02728 |
145 |
1300 |
1240 |
1170 |
1130 |
1040 |
1015 |
925 |
880 |
810 |
775 |
470 |
16' 6" |
|
PM 2400 |
02750 |
237 |
2400 |
2350 |
2190 |
2030 |
1860 |
1730 |
1645 |
1510 |
1395 |
1380 |
830 |
17' 1" |
|
PM 3600 |
02755 |
256 |
3060 |
2885 |
2775 |
2670 |
2595 |
2480 |
2365 |
2295 |
2205 |
2170 |
1615 |
22' 6" |
