Supreme Aquarium

Aquarium, Aquarium : Pumps, Supreme Aquarium

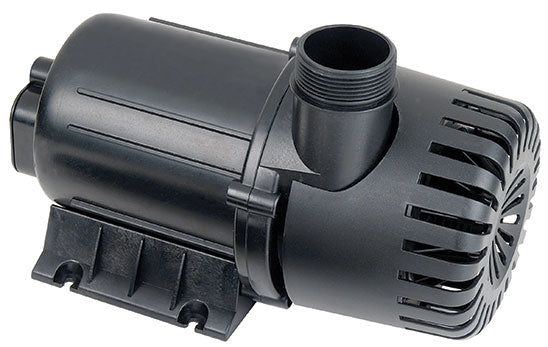

Supreme Aquarium HyDrive Water Pumps

For Freshwater Aquariums

Supreme Aquarium Hy-Drive Water Pumps are rugged, powerful and energy-efficient. The included 316 Stainless Steel Rotor is corrosion and water resistant assuring long-lasting performance in your Aquarium. All pumps come with a full set of fittings.


Item # 02583

Price: $221.99

Order Now! Only 2675 Left in Stock.

For Freshwater Aquariums

Supreme Aquarium Hy-Drive Water Pumps are rugged, powerful and energy-efficient. The included 316 Stainless Steel Rotor is corrosion and water resistant assuring long-lasting performance in your Aquarium. All pumps come with a full set of fittings.


Product Features

• Powerful, Efficient Hybrid Magnetic/Direct Drive Motor

• Energy-Efficient to Reduce Operating Cost

• Whisper-Quiet Operation

• Specifically Designed for Freshwater Aquariums

• Fish-Safe Because No Oil is Used

• Continuous Duty Operation

• Integrated Filter Screen for Clog-Resistant Operation

• 20’ Power Cord with Grounded Plug

• In-line and Submersible Operation

• Convenient Base Plate Included

• 1600, 2100 and 2600 - 1” Female Threaded Inlet, Male Threaded Outlet

• 3200, 4000 and 4800 - 1.5” Female Threaded Inlet, Male Threaded Outlet

• 6000 - 2” Female Threaded Inlet, Male Threaded Outlet

• Maximum water temperature for use: 35°C/95F

• Volts: 120 / 60Hz

• 3-Year Warranty


1600 HY-DRIVE - ITEM# 02583

Max. Watts/Amps: 120/1.0

Volts: 120 / 60Hz

Inlet 1"

Outlet 1"

Cord Length 20'

Dimensions (L x W x H) 8 7/8" x 4 3/4" x 6 1/8"

Included Fittings: (2) 1" Barb, (2) 1 1/4" Barb & (1) Coupling

2100 HY-DRIVE - ITEM# 02582

Max. Watts/Amps 190/1.5

Volts: 120 / 60Hz

Inlet 1"

Outlet 1"

Cord Length 20'

Dimensions (L x W x H) 8 7/8" x 4 3/4" x 6 1/8"

Included Fittings: (2) 1" Barb, (2) 1 1/4" Barb & (1) Coupling

2600 HY-DRIVE - ITEM# 02581

Max. Watts/Amps 270/2.2

Volts: 120 / 60Hz

Inlet 1"

Outlet 1"

Cord Length 20'

Dimensions (L x W x H) 10 1/2" x 5 3/8" x 6 7/8"

Included Fittings: (2) 1" Barb, (2) 1 1/4" Barb & (1) Coupling

3200 HY-DRIVE - ITEM# 02580

Max. Watts/Amps 160/1.5

Volts: 120 / 60Hz

Inlet 11/2"

Outlet 11/2"

Cord Length 20'

Dimensions (L x W x H) 10 1/2" x 5 3/8" x 6 7/8"

Included Fittings: (2) 1 1/2" Barb & (1) Coupling

4000 HY-DRIVE - ITEM# 02575

Max. Watts/Amps 200/1.85

Volts: 120 / 60Hz

Inlet 11/2"

Outlet 11/2"

Cord Length 20'

Dimensions (L x W x H) 10 1/2" x 5 3/8" x 6 7/8"

Included Fittings: (2) 1 1/2" Barb & (1) Coupling

4800 HY-DRIVE - ITEM# 02570

Max. Watts/Amps 280/2.15

Volts: 120 / 60Hz

Inlet 11/2"

Outlet 11/2"

Cord Length 20'

Dimensions (L x W x H) 10 1/2" x 5 3/8" x 6 7/8"

Included Fittings: (2) 1 1/2" Barb & (1) Coupling

6000 HY-DRIVE - ITEM# 02572

Max. Watts/Amps 675/5.5

Volts: 120 / 60Hz

Inlet 2"

Outlet 2"

Cord Length 20'

Dimensions (L x W x H) 11 1/4" x 5 1/2" x 7 3/8"

Included Fittings: (1) Coupling




HY-DRIVE PUMPING SPECIFICATIONS

HY-DRIVE

MODEL



ITEM#



NOMINAL



AMPS



WATTS

GPH

AT 0’

GPH

AT 1’

GPH

AT 3’

GPH

AT 5’

GPH

AT 7’

GPH

AT 10’

GPH

AT 15’

GPH

AT 20’

GPH

AT 25’



SHUTOFF

1600

02583

1600

1.0 A

120

1750

1700

1575

1400

1250

1000

375

-

-

17’

2100

02582

2100

1.5 A

190

2125

2075

1900

1750

1600

1300

850

300

-

22.5’

2600

02581

2600

2.2 A

270

2700

2550

2525

2450

2225

1975

1625

1250

300

26.5’

3200

02580

3200

1.6 A

160

3500

3300

2700

2050

1650

650

-

-

-

12’

4000

02575

4000

1.9 A

230

4300

4000

3300

2700

2350

1475

-

-

-

13’

4800

02570

4800

2.0 A

250

5100

5000

4500

3900

3150

2350

800

-

-

18.5’

6000

02572

6000

5.5 A

675

5700

5500

5100

4700

4200

3400

2450

1150

-

22.5’
