Pondmaster Air Pumps

PONDMASTER AP-SERIES AIR PUMPS have been designed to satisfy the requirements of a multitude of water-related applications. All AP-Series air pumps operate on standard 115V electric and come with a 6' power cord. The oil-less motor is designed to operate efficiently and save energy. For outdoor applications, it is recommended that the unit be enclosed to protect it from the elements.

Item # 04520

PONDMASTER AP-SERIES AIR PUMPS have been designed to satisfy the requirements of a multitude of water-related applications. All AP-Series air pumps operate on standard 115V electric and come with a 6' power cord. The oil-less motor is designed to operate efficiently and save energy. For outdoor applications, it is recommended that the unit be enclosed to protect it from the elements.

SPECIFICATIONS

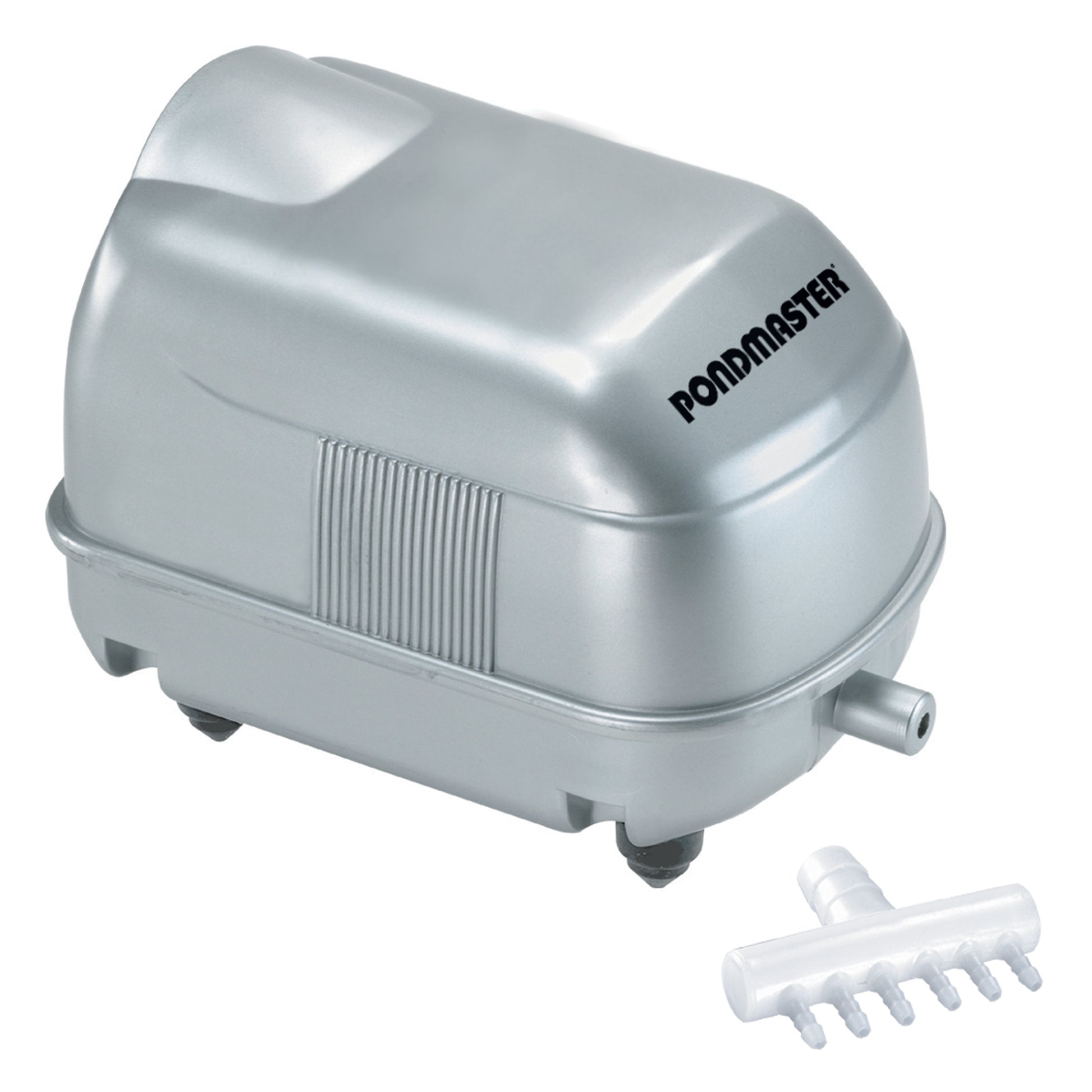

AP-20 ITEM# 04520

Air Volume 1700 cu.in/min

Maximum Water Depth 7’

Noise Level 40 dba

Watts 20

Weight 5 lbs

Air Manifold Outlets 6

Pressure 4.0 psi

Liters 28 L/min.

Dimensions (L x W x H): 8 1/2" x 5 1/2" x 6"

Cord Length 6’

Note: Can Accept 5/8” I.D. Tubing to Extend Distance between Air Pump and Manifold

AP-60 ITEM# 04560

Air Volume 5500 cu.in/min

Maximum Water Depth 10’

Noise Level 45 dba

Watts 60

Weight 14 lbs

Air Manifold Outlets 14

Pressure 5.66 psi

Liters 90 L/min.

Dimensions (L x W x H): 10" x 7 1/2" x 8 1/2"

Cord Length 6’

Note: Can Accept 3/4” I.D. Tubing to Extend Distance between Air Pump and Manifold

AP-40 ITEM# 04540

Air Volume 2900 cu.in/min

Maximum Water Depth 9.6’

Noise Level 40 dba

Watts 40

Weight 9 lbs

Air Manifold Outlets 12

Pressure 4.85 psi

Liters 47 L/min.

Dimensions (L x W x H): 9 5/8" x 6 5/8" x 7"

Cord Length 6’

Note: Can Accept 3/4” I.D. Tubing to Extend Distance between Air Pump and Manifold

AP-100 ITEM# 04580

Air Volume 9150 cu.in/min

Maximum Water Depth 11.5’

Noise Level 45 dba

Watts 100

Weight 16.5 lbs

Air Manifold Outlets 33

Pressure 6.53 psi

Liters 150 L/min.

Dimensions (L x W x H): 11 3/4" x 8" x 8 7/8"

Cord Length 6’

Note: Can Accept 3/4” I.D. Tubing to Extend Distance between Air Pump and Manifold

Video

How to: Disassemble, Reassemble & Repair the Pondmaster AP-100 Air Pump

Manuals

Download ZG143 AP AIR PUMPS.pdf ( 4.29 MB)
