ITEM # SKU:02663
ProLine

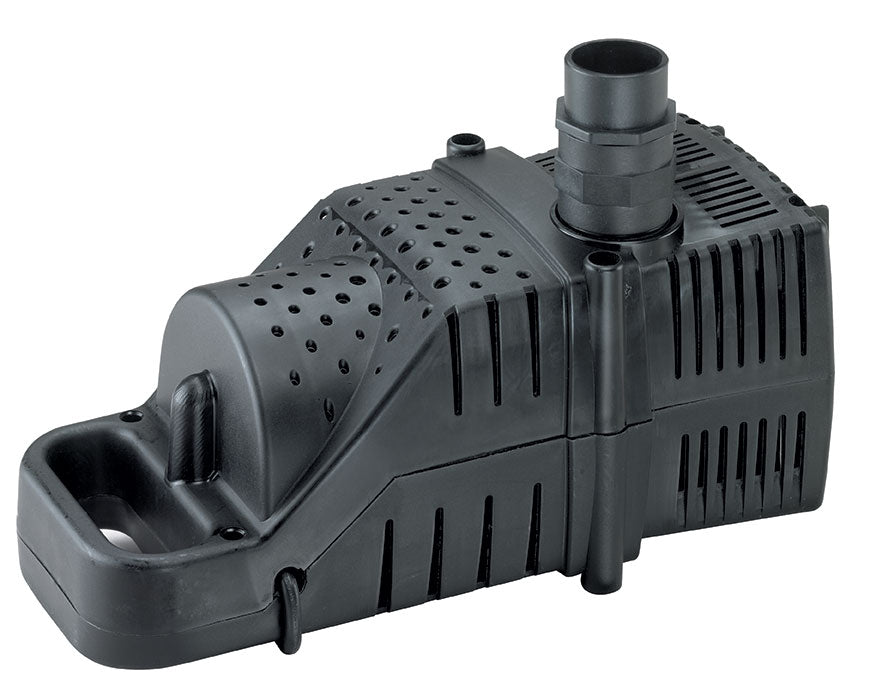

ProLine Water Pumps w/ Protective Cages
ProLine Water Pumps w/ Protective Cages

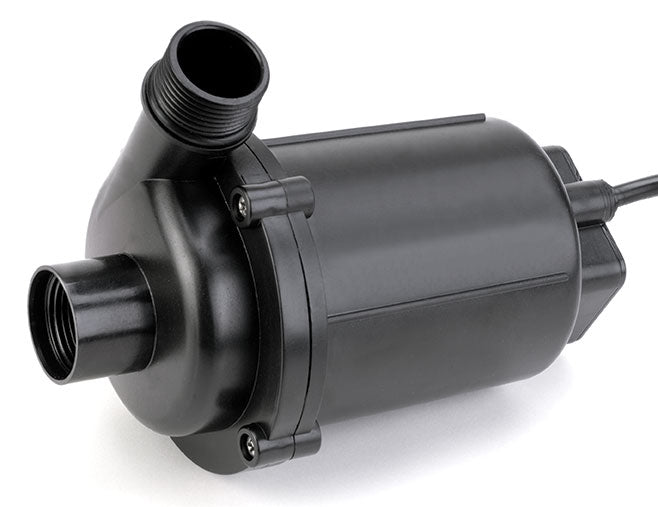

PROLINE HY-DRIVE PUMPS are high-capacity pumps designed specifically for use in larger pond installations. The Hy-Drive design combines the benefits of magnetic and direct drive technologies to deliver great performance and high efficiency in an extremely quiet, low maintenance package. The heavy-duty polypropylene enclosure has a built-in carry handle and effective molded-in debris screen. Hy-Drive pumps can be positioned vertically or horizontally and can be used as a submersible pump or as an in-line, external pumping source.
Free Shipping
On all orders worth $25 or more
Return Policy
Couldn't load pickup availability
PROLINE BY PONDMASTER HY-DRIVE PUMPS are high-capacity pumps designed specifically for use in larger pond installations. The Hy-Drive design combines the benefits of magnetic and direct drive technologies to deliver great performance and high efficiency in an extremely quiet, low maintenance package. The heavy-duty polypropylene enclosure has a built-in carry handle and effective molded-in debris screen. Hy-Drive pumps can be positioned vertically or horizontally and can be used as a submersible pump or as an inline, external pumping source.
Product Features
• Powerful, Efficient Hybrid Magnetic Induction Motor
• High-Efficiency Vortex Impeller
• 316 Stainless Steel Rotor for Greater Corrosion & Wear Resistance
• Whisper Quiet Continuous Duty Operation
• Oil-Free / Fish Safe
• Convenient Carry Handle
• Submersible or Inline Operation
• Threaded Female Couplings and Fittings Included
• Extra-Long Clog Resistant Filter Screen
• Can be positioned vertically or horizontally
• 20' Grounded Power Cord
• 3 Year Limited Warranty
|
1600 HY DRIVE - ITEM# 02663 Max. Watts/Amps: 120/1.0 Volts: 120 / 60Hz Inlet: 1" Outlet: 1" Cord Length: 20' Dimensions (L x W x H): 13" x 6 3/8" x 6" Included Fittings: (2) 1" Barb, (2) 1 1/4" Barb & (1) Coupling |
2100 HY DRIVE - ITEM# 02665 Max. Watts/Amps: 190/1.5 Volts: 120 / 60Hz Inlet: 1" Outlet: 1" Cord Length: 20' Dimensions (L x W x H): 13" x 6 3/8" x 6" Included Fittings: (2) 1" Barb, (2) 1 1/4" Barb & (1) Coupling |
|
2600 HY DRIVE - ITEM# 02667 Max. Watts/Amps: 270/2.2 Volts: 120 / 60Hz Inlet: 1" Outlet: 1" Cord Length: 20' Dimensions (L x W x H): 15" x 7 1/4" x 7 1/4" Included Fittings: (2) 1" Barb, (2) 1 1/4" Barb & (1) Coupling |
3200 HY DRIVE - ITEM# 02680 Max. Watts/Amps: 160/1.5 Volts: 120 / 60Hz Inlet: 11/2" Outlet: 11/2" Cord Length: 20' Dimensions (L x W x H): 15" x7 1/4" x 7 1/4" Included Fittings: (2) 1 1/2" Barb & (1) Coupling |
|
4000 HY DRIVE - ITEM# 02675 Max. Watts/Amps: 200/1.85 Volts: 120 / 60Hz Inlet: 11/2" Outlet: 11/2" Cord Length: 20' Dimensions (L x W x H): 15" x 7 1/4" x 7 1/4" Included Fittings: (2) 1 1/2" Barb & (1) Coupling |
4800 HY DRIVE - ITEM# 02670 Max. Watts/Amps: 280/2.15 Volts: 120 / 60Hz Inlet: 11/2" Outlet: 11/2" Cord Length: 20' Dimensions (L x W x H): 15" x 7 1/4" x 7 1/4" Included Fittings: (2) 1 1/2" Barb & (1) Coupling |
|
6000 HY DRIVE - ITEM# 02683 Max. Watts/Amps: 675/5.5 Volts: 120 / 60Hz Inlet: 2" Outlet: 2" Cord Length: 20' Dimensions (L x W x H): 15 1/2" x 7" x 8" Included Fittings: (1) Coupling |
- Replacement Cage for ProLine 1600 & 2100
- Replacement Volute for HY-Drive 1600 & 2100
- Replacement Rotor for HY-Drive 1600
- Replacement Rotor for HY-Drive 2100
- Replacement Volute for HY-Drive 2600
- Replacement Rotor for HY-Drive 2600
- Replacement Cage for ProLine 2600 - 4800
- Replacement Volute for HY-Drive 3200-4800
- Replacement Rotor for HY-Drive 3200
- Replacement Rotor for HY-Drive 4000
- Replacement Rotor for HY-Drive 4800
- Replacement Volute for HY-Drive 6000
- Replacement Rotor for HY-Drive 6000
- Replacement Cage for ProLine 6000
