Hydroponics, Hydroponics : Water & Air Pumps, Supreme Hydro

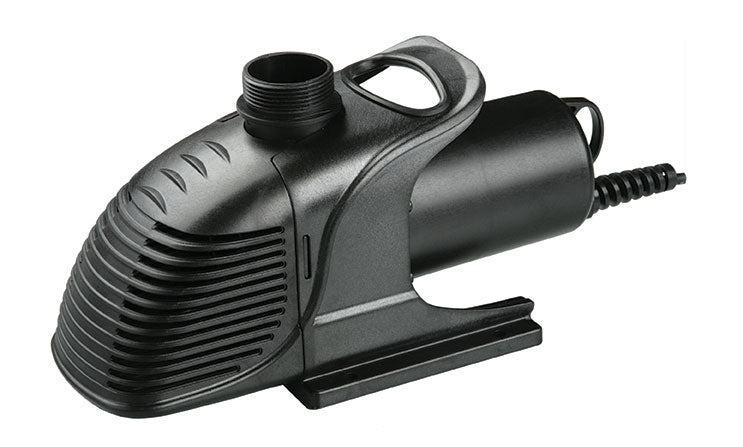

Supreme Hydro Hy-Drive Water Pumps


Item # 40405

Product Features

• Hybrid direct drive design

• Good for Vertical Grow Applications

• Energy Efficient to reduce operating cost

• Oil-Free with no seals to wear out

• Ceramic Shaft and Bearings

• Continuous duty use

• In-line or Submersible operation

• 20’ Power Cord with Grounded Plug

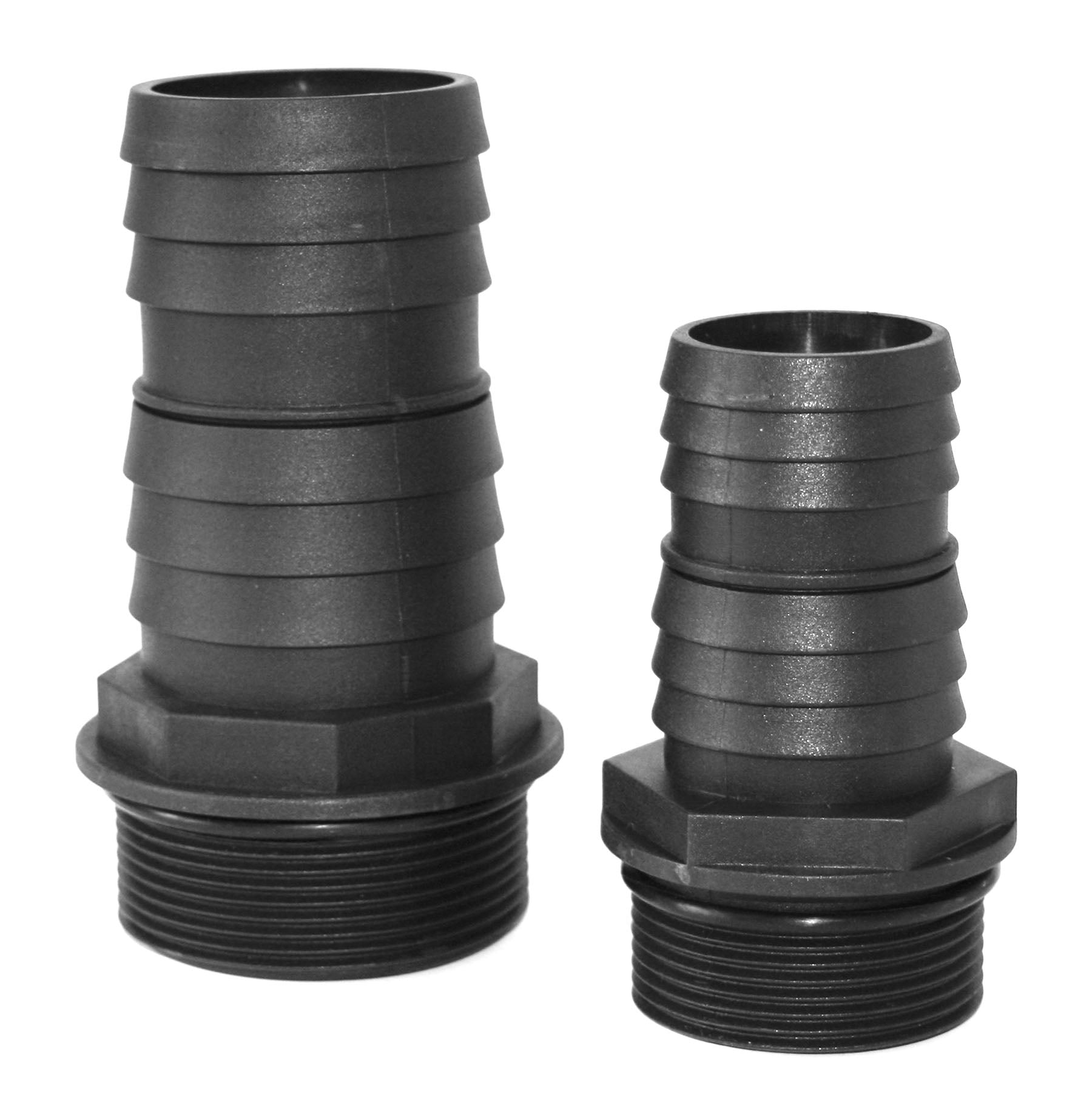

1400 1900, 2550, 5100 and 6600 - 1 1/2” Female Threaded Inlet and Male Threaded Outlet

7600 - 2” Female Threaded Inlet and 1 1/2" Male Threaded Outlet

• Maximum water temperature for use: 35°C/95F.

• 3 Year Limited Warranty


1400 HY-Drive Pump ITEM# 40405

Maximum Flow Rate 1400 GPH

Volts: 120 / 60Hz

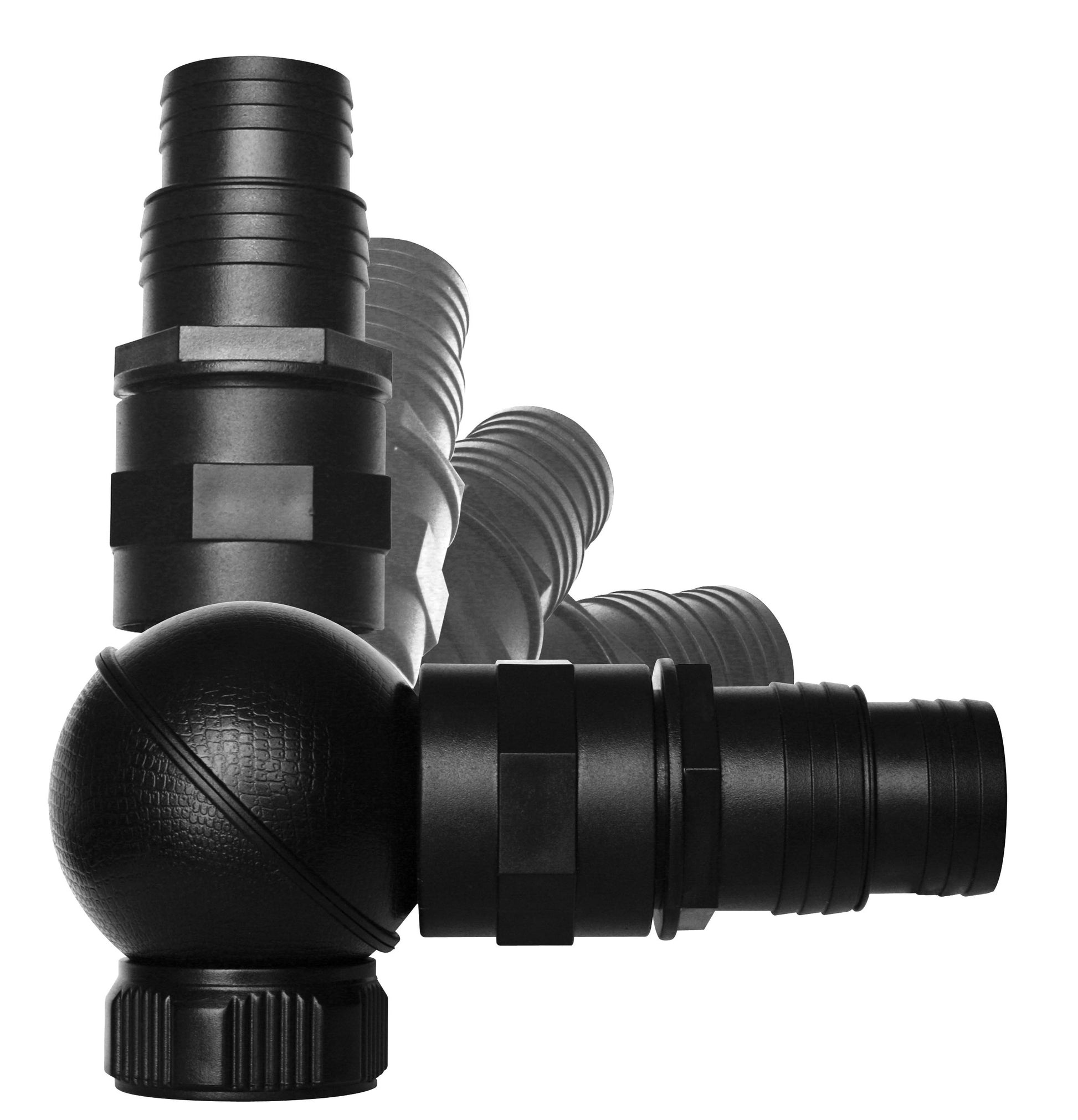

Included Fittings: (2) 1 1/2" Couplings, (2) 1 1/2" Stepped Barbs and Swivel Joint Connector

5100 HY-Drive Pump ITEM# 40435

Maximum Flow Rate 5100 GPH

Volts: 120 / 60Hz

Included Fittings: 1 1/2" Coupling,
2" Coupling, 2" to 1 1/2" Reducer, 1 1/2" Stepped Barb, 2" Stepped Barb, 1 1/2" Swivel Joint Connector

1900 HY-Drive Pump ITEM# 40415

Maximum Flow Rate 1900 GPH

Volts: 120 / 60Hz

Included Fittings: (2) 1 1/2" Couplings, (2) 1 1/2" Stepped Barbs and Swivel Joint Connector

6600 HY-Drive Pump ITEM# 40445

Maximum Flow Rate 6600 GPH

Volts: 120 / 60Hz

Included Fittings: 1 1/2" Coupling,
2" Coupling, 2" to 1 1/2" Reducer, 1 1/2" Stepped Barb, 2" Stepped Barb, 1 1/2" Swivel Joint Connector

2550 HY-Drive Pump ITEM# 40425

Maximum Flow Rate 2550 GPH

Volts: 120 / 60Hz

Included Fittings: (2) 1 1/2" Couplings, (2) 1 1/2" Stepped Barbs and Swivel Joint Connector

7600 HY-Drive Pump ITEM# 40450

Maximum Flow Rate 7600 GPH

Volts: 120 / 60Hz

Included Fittings: 1 1/2" Coupling,
2" Coupling, 2" to 1 1/2" Reducer, 1 1/2" Stepped Barb, 2" Stepped Barb, 1 1/2" Swivel Joint Connector





RECIRCULATING WATER PUMP SPECIFICATIONS

GPH PUMP FLOW VS. PUMPING HEIGHT

PUMP

ITEM#

WATTS

AMPS

1’

3’

5’

7’

10’

15’

20’

25’

30’

SHUTOFF

1400

40405

150

1.3

1350

1250

1150

1100

950

675

350

-

-

22’

1900

40415

93

.78

1710

1325

870

555

-

-

-

-

-

10’

2550

40425

147

1.3

2380

2010

1490

1045

455

-

-

-

-

11.5’

5100

40435

439

3.6

5100

5050

4650

4375

3900

3050

2375

1675

-

30’

6600

40445

593

4.9

6600

6275

5500

4925

4325

3325

2425

1850

550

30.5’

7600

40450

635

5.3

7440

7210

6690

6170

5525

3805

2640

1310

-

27.5’



To achieve maximum flow from the 5100, 6600 or 7600 GPH pumps, a minimum of 2” ID tubing must be used.
