Product Features
• Models 2 through 18 incorporate an adjustable Venturi which adds Aeration into the nutrient rich water flow, stimulating root growth.
• 10’ Power Cord on all models
• Time proven Magnetic Drive Technology
• Energy efficient and Oil-Free
• In-line or Submersible Operation
• Models 2 through 7 include: 1/2” Barb x 1/2" NPT Fitting
• Models 9.5 through 18 include: 1/2” Barb x 3/4" NPT Fitting
• Models 24 and 36 include 1” Male NPT Outlet
• 5-Year Limited Warranty

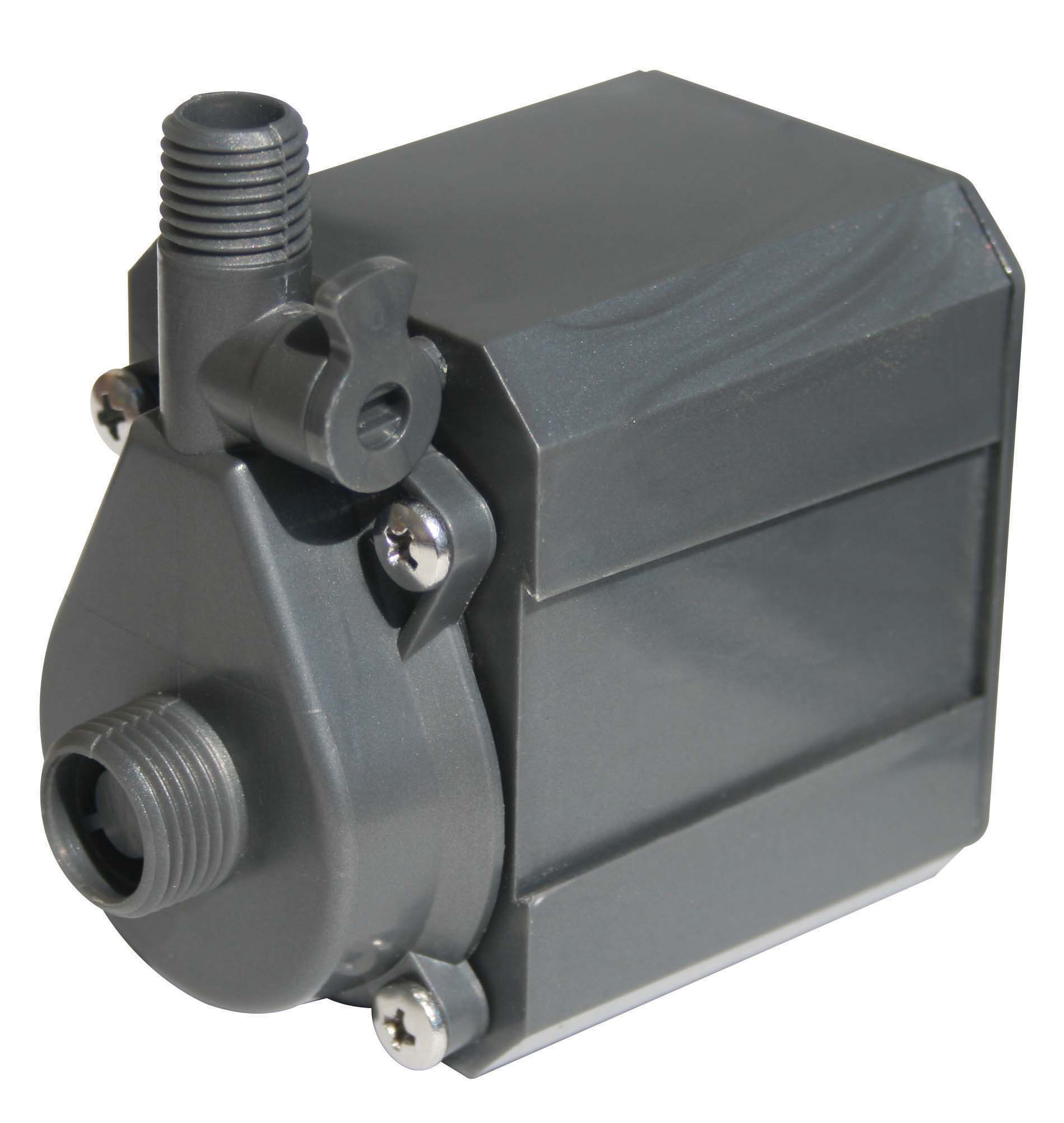

Model 1.9 ITEM# 40120 Maximum Flow Rate 190 GPH Watts/Amps 19/0.3 3/8” MPT Inlet and 1/4” MPT Outlet |
Model 2 with Venturi ITEM# 40122 Maximum Flow Rate 250 GPH Watts/Amps 24/0.4 1/2” FPT Inlet and MPT Outlet |
Model 3 with Venturi ITEM# 40123 Maximum Flow Rate 350 GPH Watts/Amps 35/0.6 1/2” FPT Inlet and MPT Outlet |
Model 5 with Venturi ITEM# 40125 Maximum Flow Rate 500 GPH Watts/Amps 45/0.9 1/2” FPT Inlet and MPT Outlet |

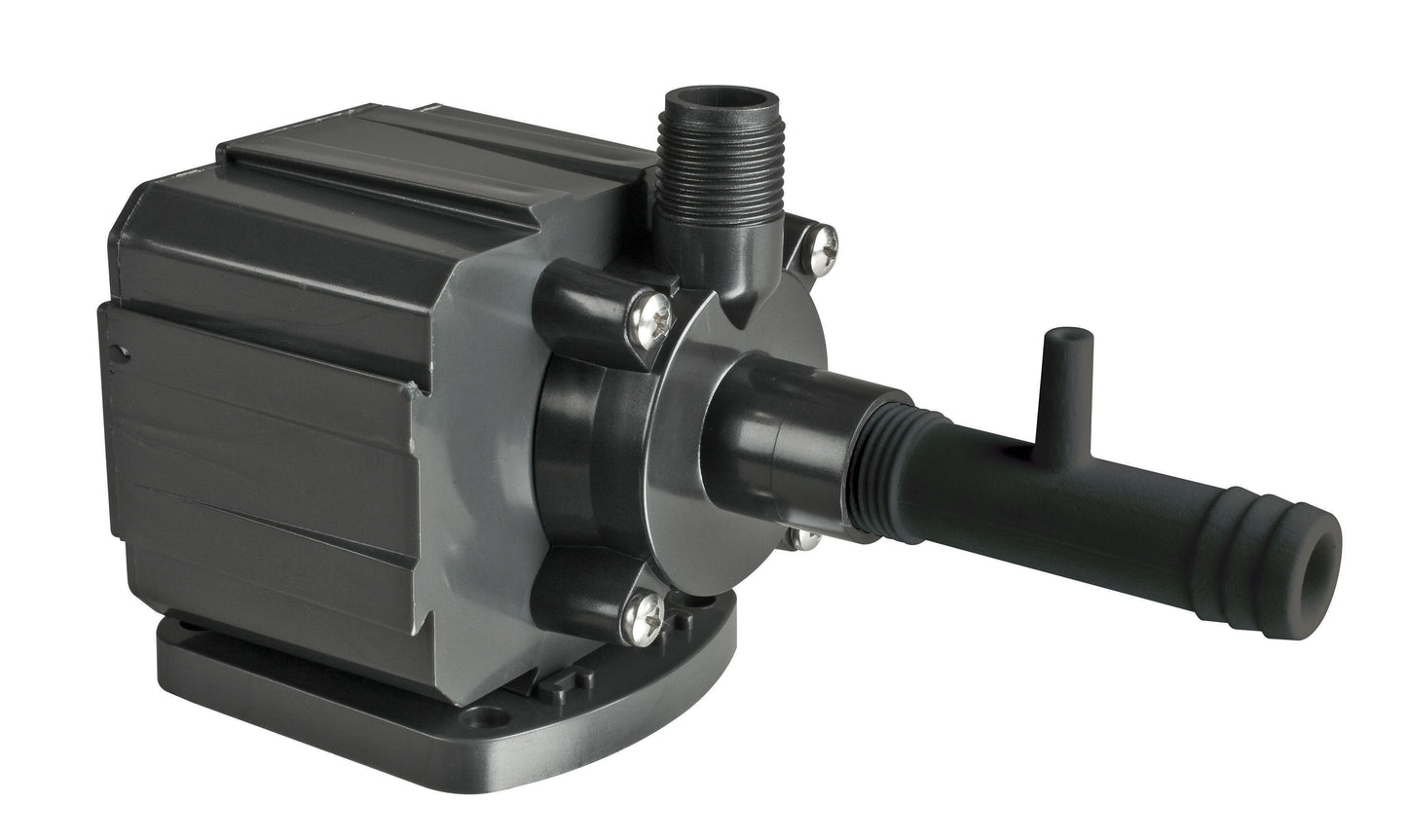

Model 7 with Venturi ITEM# 40127 Maximum Flow Rate 700 GPH Watts/Amps 70/1.6 1/2” FPT Inlet and MPT Outlet |

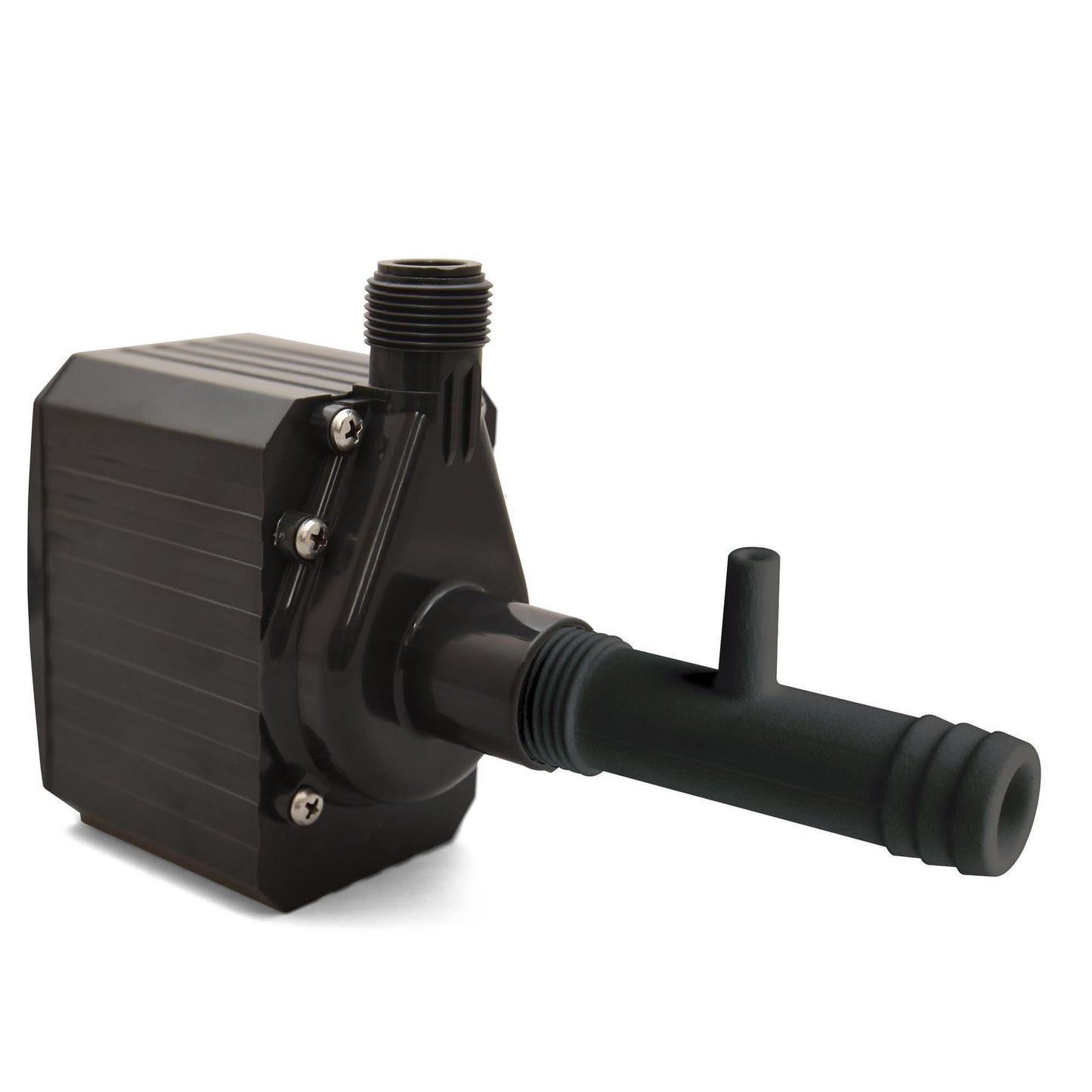

Model 9.5 with Venturi ITEM# 40129 Maximum Flow Rate 950 GPH Watts/Amps 93/1.33 3/4” FPT Inlet and MPT Outlet |
Model 12 with Venturi ITEM# 40132 Maximum Flow Rate 1200 GPH Watts/Amps 110/1.5 3/4” FPT Inlet and MPT Outlet |

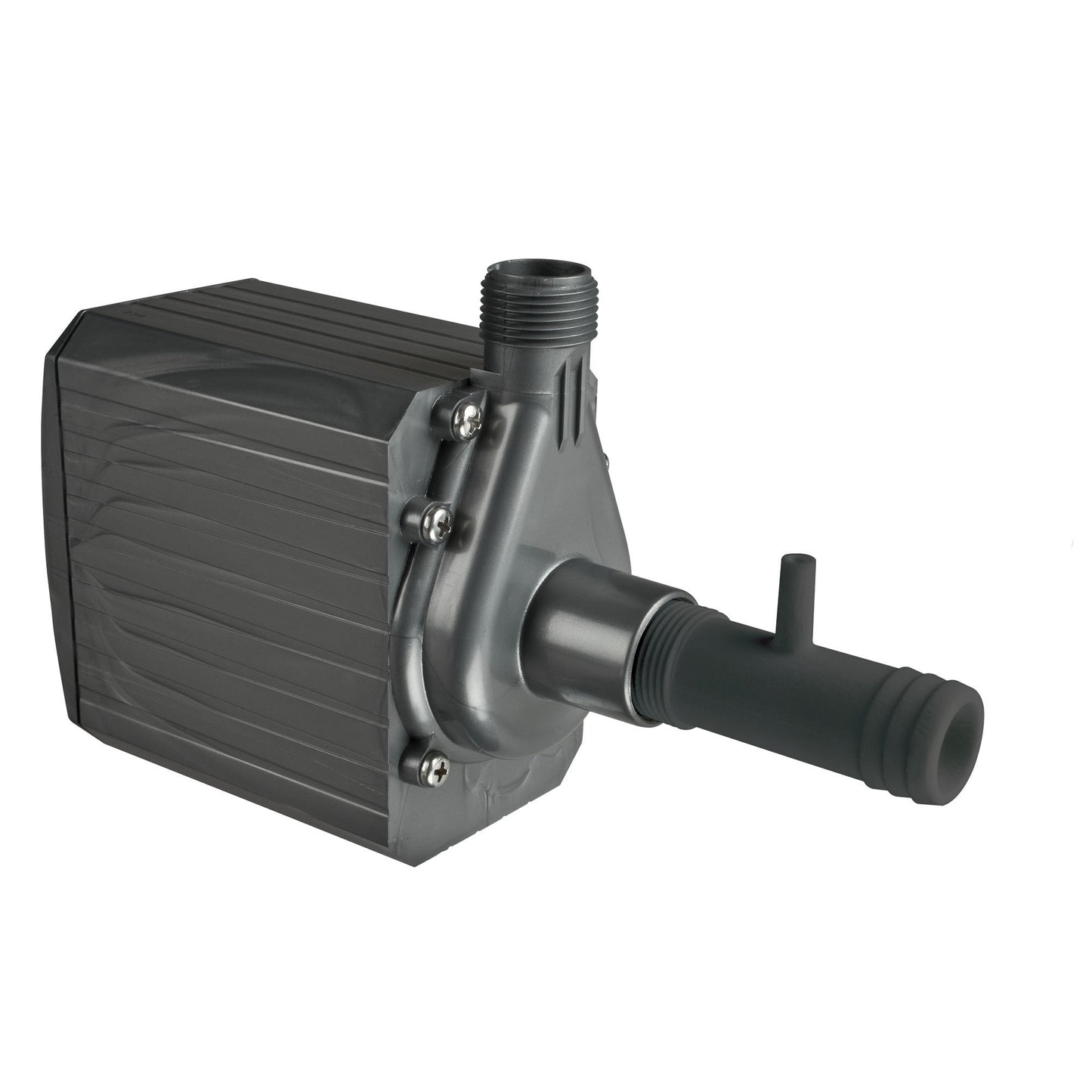

Model 18 with Venturi ITEM# 40138 Maximum Flow Rate 1800 GPH Watts/Amps 145/1.55 3/4” FPT Inlet and MPT Outlet |
Model 24 ITEM# 40140 Maximum Flow Rate 2400 GPH Watts/Amps 237/2.2 1” FPT Inlet and MPT Outlet Dimensions: 7.25" x 4.0" x 6" |

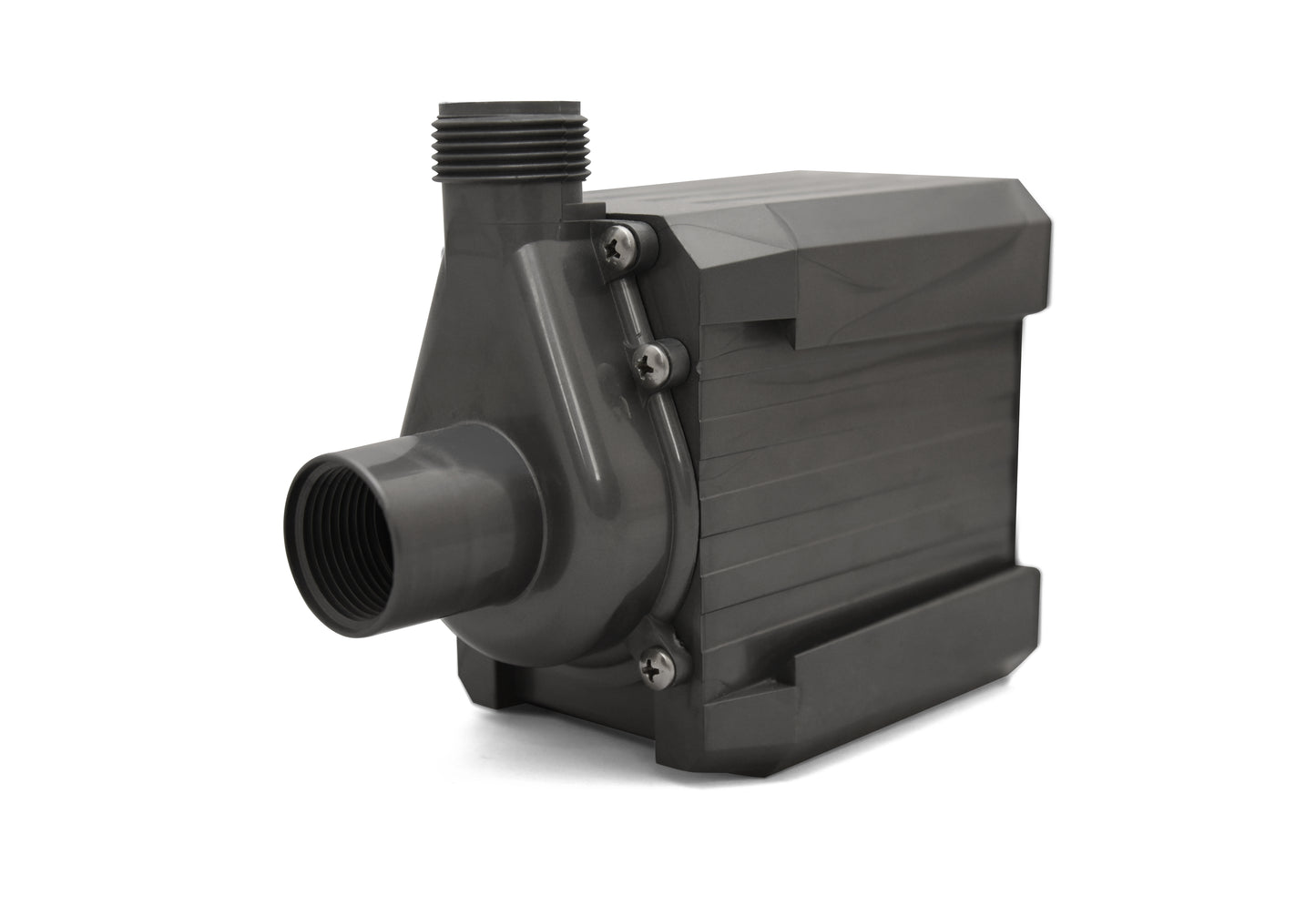

Model 36 ITEM# 40145 Maximum Flow Rate 3100 GPH Watts/Amps 256/3.0 1” FPT Inlet and MPT Outlet Dimensions: 7.25" x 4.0" x 6" |
RECIRCULATING WATER & AIR PUMP SPECIFICATIONS |
||||||||
PUMP |
SHUT OFF |
FLOOD TABLE SIZES |
||||||
2x2 |
2x3 |
2x4 |
3x3 |
3x6 |
4x4 |
8x4 |
||
190 GPH |
7’ |
x |
|
|
|
|
|
|
250 GPH |
7’ |
x |
x |
|
|
|
|
|
350 GPH |
10.5’ |
|
x |
x |
|
|
|
|
500 GPH |
10.5’ |
|
|
x |
x |
|
|
|
700 GPH |
11.5’ |
|
|
x |
x |
|
|
|
950 GPH |
13.5’ |
|
|
|
|
x |
x |
|
1200 GPH |
13.5’ |
|
|
|
|
x |
x |
x |
1800 GPH |
16.5’ |
|
|
|
|
|
|
x |
2400 GPH |
17’ |
|
|
|
|
|
|
x |
3600 GPH |
22.5’ |
|
|
|
|
|
|
x |
Shut off is the maximum vertical height the pump will pump water.
To calculate the pressure (psi), multiply the shut off by .454.
Download ZG108.pdf ( 3.35 MB)
Download ZG109_revB.pdf ( 3.48 MB)
Download ZG125_revE_Model 1.9 Pump.pdf ( 0.89 MB)
Download ZG140_mag 24_36_update_1.11.pdf ( 1.53 MB)
Download ZG140_RevB MagDrive 24-and-36.pdf ( 0.61 MB)
Download ZG140-RevC-24-36-Instructions.pdf ( 1.43 MB)
- Replacement Impeller for Model 1.9 02519 or 40120
- EXTRA LARGE FOAM PRE-FILTER (EXTRA LARGE PRE-FILTER)
- FOAM PRE-FILTER For 250 GPH - 700 GPH Pumps and Hydro-Air 1200 Pump (FOAM PRE-FILTER)
- RIGID PRE-FILTER For 250 GPH, 350 GPH, 500 GPH AND 700 GPH PUMPS (RIGID PRE-FILTER)
- COMPACT RIGID PREFILTER FOR MAG-DRIVE PUMPS MODELS 250-700 GPH PUMPS
- 1/2" Adjustable 3-Way Diverter Valve
- Replacement Pump Cover/Volute Threaded Intake for 250GPH and 350GPH Pumps
- Replacement Impeller for Model 2 02512, 02522 or 40122
- VENTURI ASSM W/TUBING & MUFFLER - MODELS 2 TO 7
- Replacement Impeller for Model 3 & Model 5 (Replacement Impeller for Model 3 & Model 5)
- Replacement Pump Cover/Volute for Model 5 and Model 7 Mag Drive Pumps (Replacement Pump Cover/Volute for Model 5 and Model 7 Mag Drive Pumps)
- Replacement Impeller for Model 7 02517, 02527 or 40127
- Replacement Impeller for Model 9.5B 02710, 02720 or 40129
- FOAM PRE-FILTER For 950 GPH, 1200 GPH and 1800 GPH Pumps (FOAM PRE-FILTER)
- Replacement Pump Cover/Volute for Mag-Drive Pumps Model 9.5A or 9.5B
- 3/4" Adjustable 3-Way Diverter Valve (3/4)
- VENTURI ASSM W/TUBING & MUFFLER - MODELS 9.5 TO 18
- Replacement Impeller for Model 12B 02712, 02722 or 40132
- Replacement Pump Cover/Volute for Model 12B
- Replacement Impeller for Model 18B 02718, 02728 or 40138
- Rigid Pre-Filter w/ Bushing For Mag-Drive 950-3600 GPH Pumps
- Replacement Pump Cover/Volute for Model 24 and Model 36 Mag Drive Pumps (Replacement Pump Cover/Volute for Model 24 and Model 36 Mag Drive Pumps)
- Impeller Assembly for Model 24B Mag Drive Pumps (B Models) (Impeller Assembly for Model 24B Mag Drive Pumps (B Models))
- Impeller Assembly for Model 36B Mag Drive Pumps (B Models) (Impeller Assembly for Model 36B Mag Drive Pumps (B Models))
