Hydroponics : Water & Air Pumps

Hydroponics, Hydroponics : Water & Air Pumps, Hydroponics : Water Pumps, Supreme Hydro

Supreme Hydro-Mag Recirculating Water Pumps

SUPREME HYDRO-MAG® 190 to 3600 SERIES PUMPS operate in-line or submerged, with quiet, efficient and reliable 24/7 performance.

Models 2 through 18 feature an adjustable venturi which adds aeration into nutrient rich water flow, stimulating root growth and an epoxy encased power unit ensuring that water never gets contaminated with harmful oils or chemicals.

Item # 40120

Price: $43.99

Order Now! Only 3 Left in Stock.

SUPREME HYDRO-MAG® 190 to 3600 SERIES PUMPS operate in-line or submerged, with quiet, efficient and reliable 24/7 performance.

Models 2 through 18 feature an adjustable venturi which adds aeration into nutrient rich water flow, stimulating root growth and an epoxy encased power unit ensuring that water never gets contaminated with harmful oils or chemicals.

Product Features

• Models 2 through 18 incorporate an adjustable Venturi which adds Aeration into the nutrient rich water flow, stimulating root growth.

• 10’ Power Cord on all models

• Time proven Magnetic Drive Technology

• Energy efficient and Oil-Free

• In-line or Submersible Operation

• Models 2 through 7 include: 1/2” Barb x 1/2" NPT Fitting

• Models 9.5 through 18 include: 1/2” Barb x 3/4" NPT Fitting

• Models 24 and 36 include 1” Male NPT Outlet

• 5-Year Limited Warranty

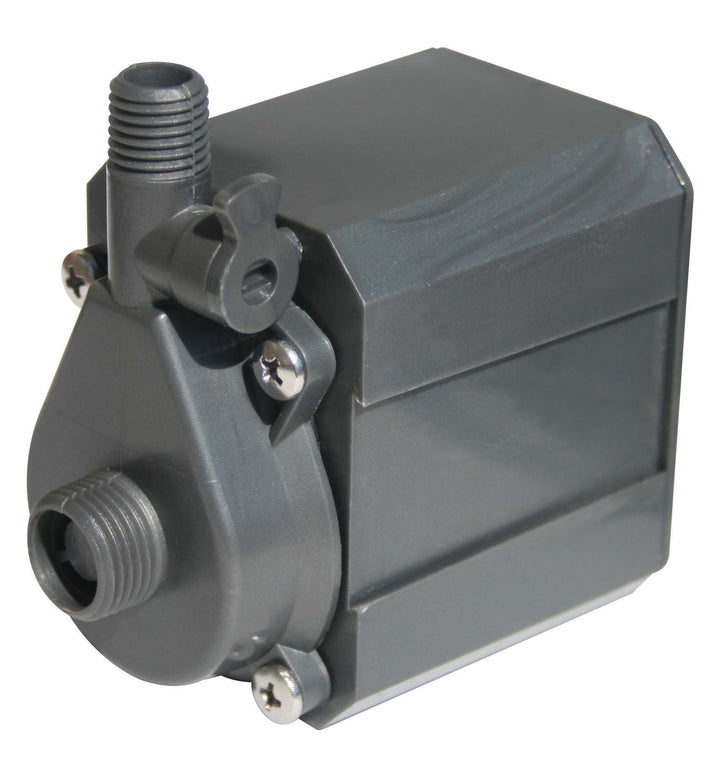

Model 1.9 ITEM# 40120

Maximum Flow Rate 190 GPH

Watts/Amps 19/0.3

3/8” MPT Inlet and 1/4” MPT Outlet

Model 2 with Venturi ITEM# 40122

Maximum Flow Rate 250 GPH

Watts/Amps 24/0.4

1/2” Barb x 1/2" NPT Fitting

Model 3 with Venturi ITEM# 40123

Maximum Flow Rate 350 GPH

Watts/Amps 35/0.6

1/2” Barb and1/2" NPT Fitting

Model 5 with Venturi ITEM# 40125

Maximum Flow Rate 500 GPH

Watts/Amps 45/0.9

1/2” Barb x 1/2" NPT Fitting

Model 7 with Venturi ITEM# 40127

Maximum Flow Rate 700 GPH

Watts/Amps 70/1.6

1/2” Barb and1/2" NPT Fitting

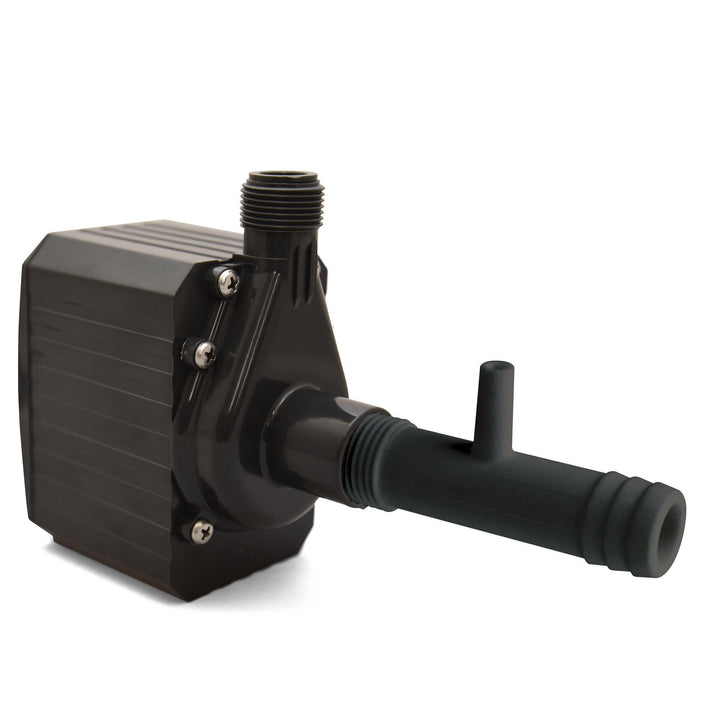

Model 9.5 with Venturi ITEM# 40129

Maximum Flow Rate 950 GPH

Watts/Amps 93/1.33

1/2” Barb x 3/4" NPT Fitting

Model 12 with Venturi ITEM# 40132

Maximum Flow Rate 1200 GPH

Watts/Amps 110/1.5

1/2" Barb x 3/4" NPT Fitting

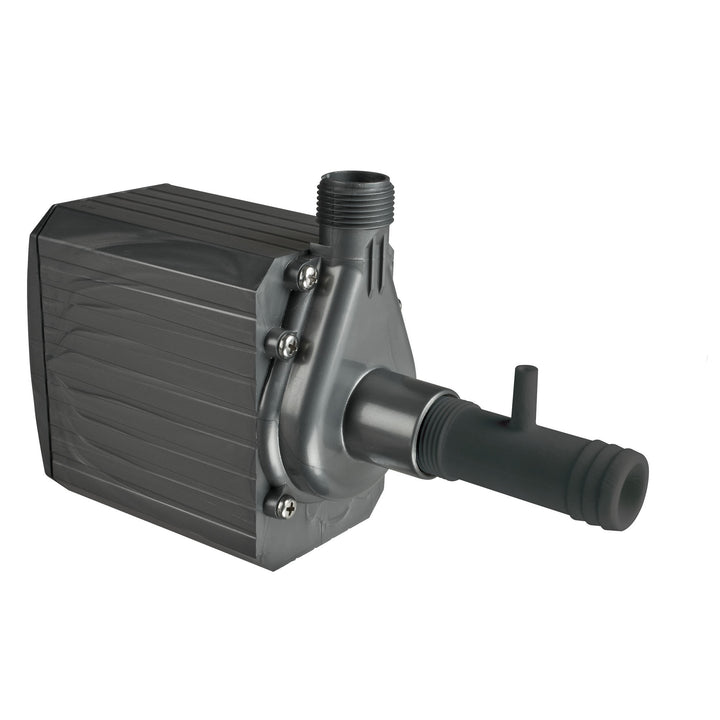

Model 18 with Venturi ITEM# 40138

Maximum Flow Rate 1800 GPH

Watts/Amps 145/1.55

1/2” Barb x 3/4" NPT Fitting

Model 24 ITEM# 40140

Maximum Flow Rate 2400 GPH

Watts/Amps 237/2.2

1” Male NPT Outlet

Dimensions: 7.25" x 4.0" x 6"

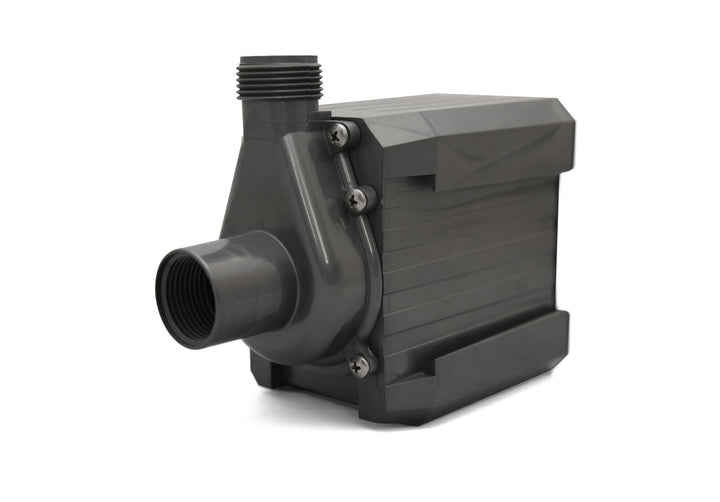

Model 36 ITEM# 40145

Maximum Flow Rate 3100 GPH

Watts/Amps 256/3.0

1” Male NPT Outlet

Dimensions: 7.25" x 4.0" x 6"





RECIRCULATING WATER & AIR PUMP SPECIFICATIONS



PUMP

SHUT OFF

FLOOD TABLE SIZES

2x2

2x3

2x4

3x3

3x6

4x4

8x4

190 GPH

7’

x













250 GPH

7’

x

x











350 GPH

10.5’



x

x









500 GPH

10.5’





x

x







700 GPH

11.5’





x

x







950 GPH

13.5’









x

x



1200 GPH

13.5’









x

x

x

1800 GPH

16.5’













x

2400 GPH

17’













x

3600 GPH

22.5’













x



Shut off is the maximum vertical height the pump will pump water.
To calculate the pressure (psi), multiply the shut off by .454.
